Rebuild Service only for Phono idler wheel used on many VM models in the 1220, 1230, and 1250 series 22523, 22915, 24428-A, 35429, 42136, 45000, 46016, 46583. Also Model 314 and 805, 522 etc. Philco (Same product as 1499-42) RCA 110040. Outside Diameter (O.D.): 1.870 Inches / 47.51 mm Inside Diameter (I.D.): .112 Inches / 2.83 mm Overall Height: .561 Inches / 14.26 mm 2025-08-05 10:33:37 2025-08-05 15:53:10 2025-08-05 15:53:14

Idler drive wheel for V-M built record changers and turntables for Voice of Music, Emerson, GE, Motorola, Symphonic, Zenith and many other brands of phonos. Replaces aftermarket part 1453. Replaces V-M part 7435, 9092, 19388, 21327, 21394, 24700 used on early 1200 series record changers,GE EA97X100, EA97X152, RS1733, RS2885, RS2942 for many models; Motorola 49P60023A16, 49R635330 for many models; Zenith part number same as V-M except has VM or 907 prefix, for many changers used in many phono models.

This is a Rebuild service old one needs to be sent in first. Replaces Sears part 39-107-0 for many 528.66000 series and 528.67000 series models. Idler Wheel Specifications: Outside Diameter Large (O.D.): 1.682 Inches / 42.73 mm Outside Diameter Small (O.D.): .754 Inches / 19.16 mm Inside Diameter (I.D.): .213 Inches / 5.43 mm Overall Height: .945 Inches / 21.01 mm

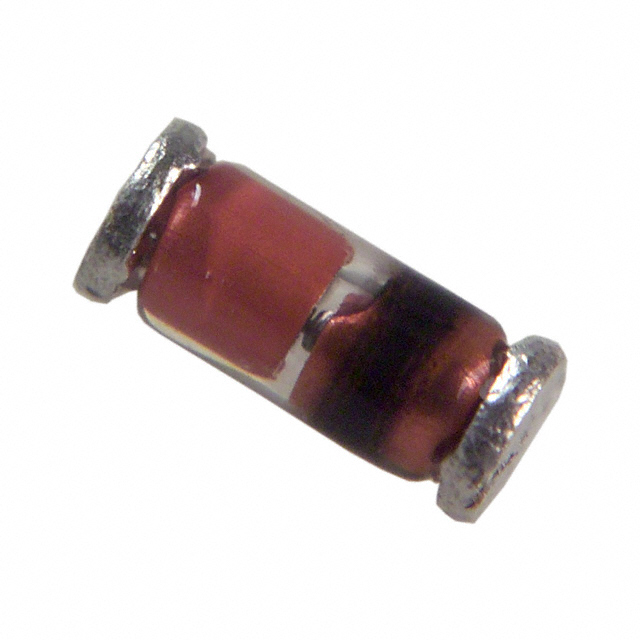

LL4148 1n4148 surface mount DO-213AA C 7478-8

12V 500MW 5% DO-35 ZENER DIODE BULK Other 12v ZENERS 1N963A 1N963B 82131050

RES-1W 1.3K OHM 2% 4

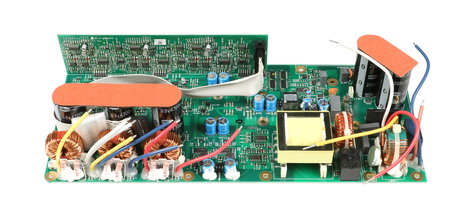

Mackie TH12A THUMP12 ASP KIT PCB 120V PCBs INCLUDED 0021333-09 0021633-00 2040129-1 2040129-2 02B0660059D0

---

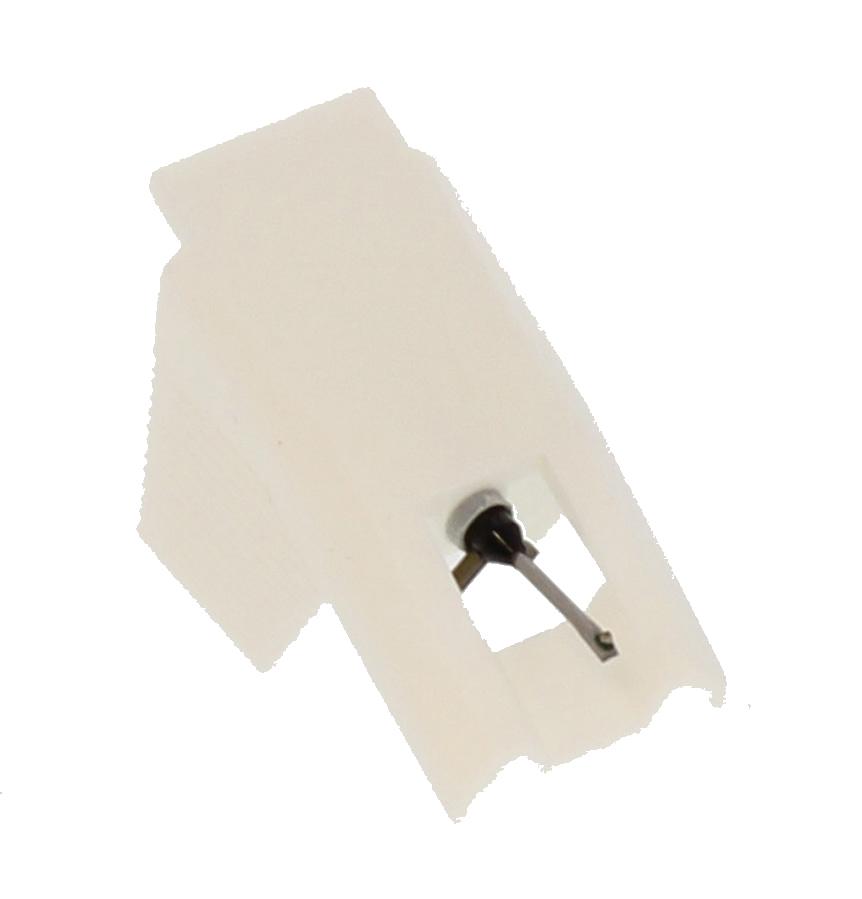

ATN3472P ORIG. STYLUS

AW-3 Spindle for 33 lps uses on Dual 209,1210,1211,1212, 1214,1219,1220,1222, 1224,1225,1226,1228,1229,1229Q,1234,1234A, 1235, 1236,1237,1239, 1241,1242,1245,1246, 1249,1254,1256,1257, 1258,1264,1268 219895 213-895

25mm Spring Medium
