Audio Lab of Georgia

.86mH COIL AIR CORE 18Ga

.60mH COIL AIR CORE 18 awg wire red Rdc 0.38 ohm 43mm od x 26mm id x 18mm h upc 848791003370 LW18-60 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction. Features fully annealed refined copper wire, baked enamel insulator, and perfect layer construction. The thin enameled wire permits the tightest windings to minimize DCR and air core construction to ensure no hysteresis and saturation distortions.

Ribbon kit for 1604

POTENTIOMETER ADAPTER - EXTENDER

av connector for mackie ppm-608

PCB Power Amp for Mackie SRM150

Mackie PSU PCB FOR SRM150 (V2)

tweeter driver

Switch, Rocker Power Switch SPST 125VAC 16A Mackie SRM450V2 CARAL RH Series LECI RS606 SERIES (27.5x10.5X31MM)

15 woofer 16 ohm TC-1560S FOR Mackie S525 - TAPCO 6925

Mackie PCB Assy ProFX USB Audio Codec

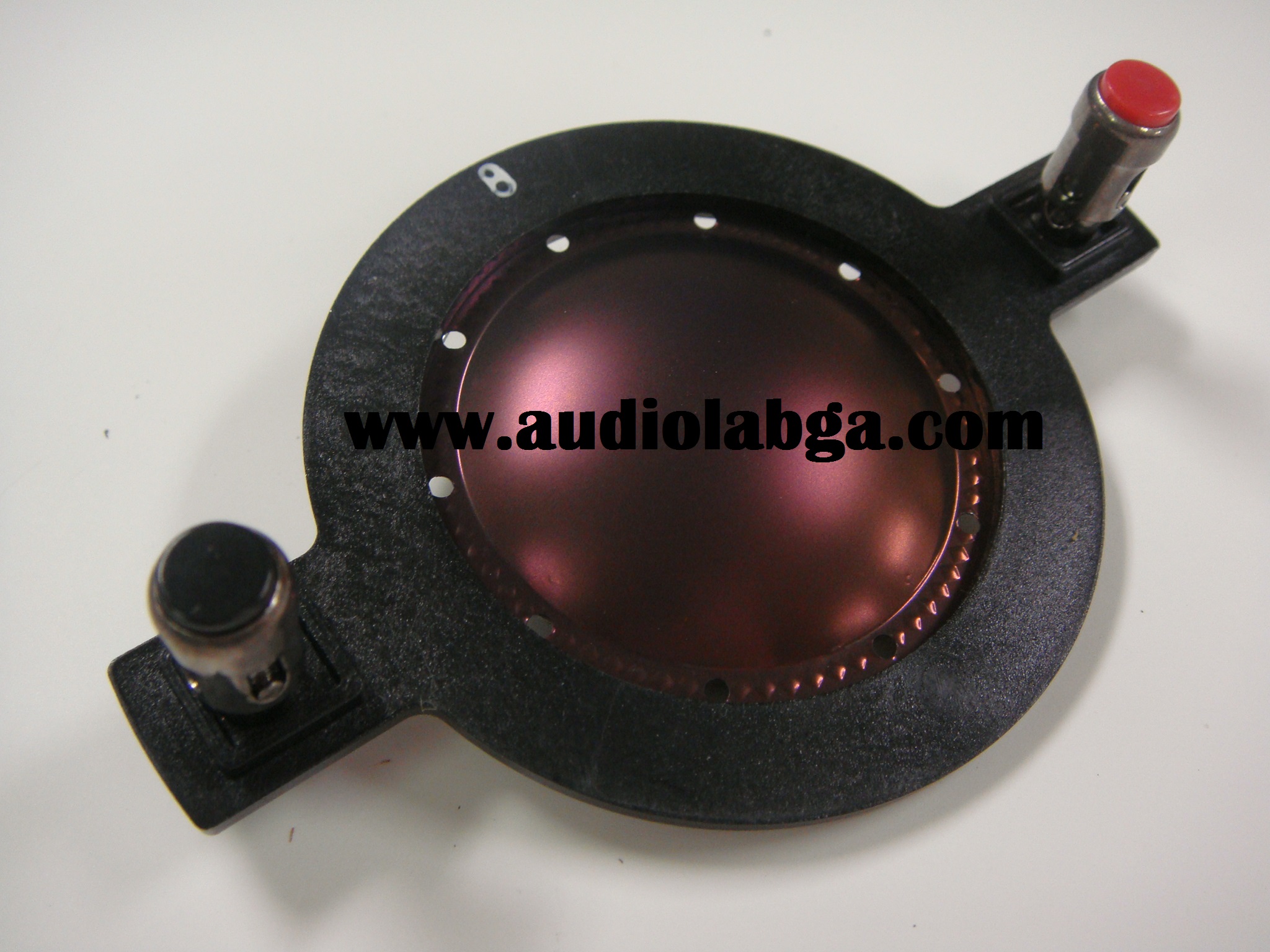

USE DIA BMD440V2 Mackie SRM450V2 Diaphragm for HF Driver 0025726, DC10/1801-8

Mackie HD1801 amplifier assembly 100-120V OEM

OEM amp module MACKIE SRM1801 TH-18S NLA USE 2046526-00

PRO 12 00497070 Impedance: 8 Ohms Power capacity: 800 W Peak 400 W Program 200 W Continuous Sensitivity: 94.3 dB / 1 W 1 m Usable freq. range: 50 Hz ~ 4 kHz Cone: Kevlar® impregnated cellulose Voice coil diameter: 2.375" / 60.3 mm Voice coil material: 2 layers, thermally bonded copper wire Kapton former Nomex® stiffener Net weight lb. / kg: 9.7 lbs. / 4.4 kg Znom (ohms) 8 Revc (ohms) 6.00 Sd (Square Meters) 0.053 BL (T/M) 12.36 Fo (Hz) 48.4 Vas (liters) 86.4 Cms (uM/N) 219.7 Mms (gm) 49.10 Qms 3.84 Qes 0.588 Qts 0.510 Xmax (mm) 2.5 Le (mH) 0.72 SPL (1W 1m) 94.3 No (%) 1.73% Vd (cu. in. / ml) 16.2 / 266 Pmax (Watts pgm.) 400 Disp (cu. in. / ml) 73 / 1192 12" Packed Weight: 12.13 lb (5.5 kg) Packed Length: 14" (35.56 cm) Packed Width: 13.125" (33.34 cm) Packed Height: 6.75" (17.14 cm)

USE 483513037166
